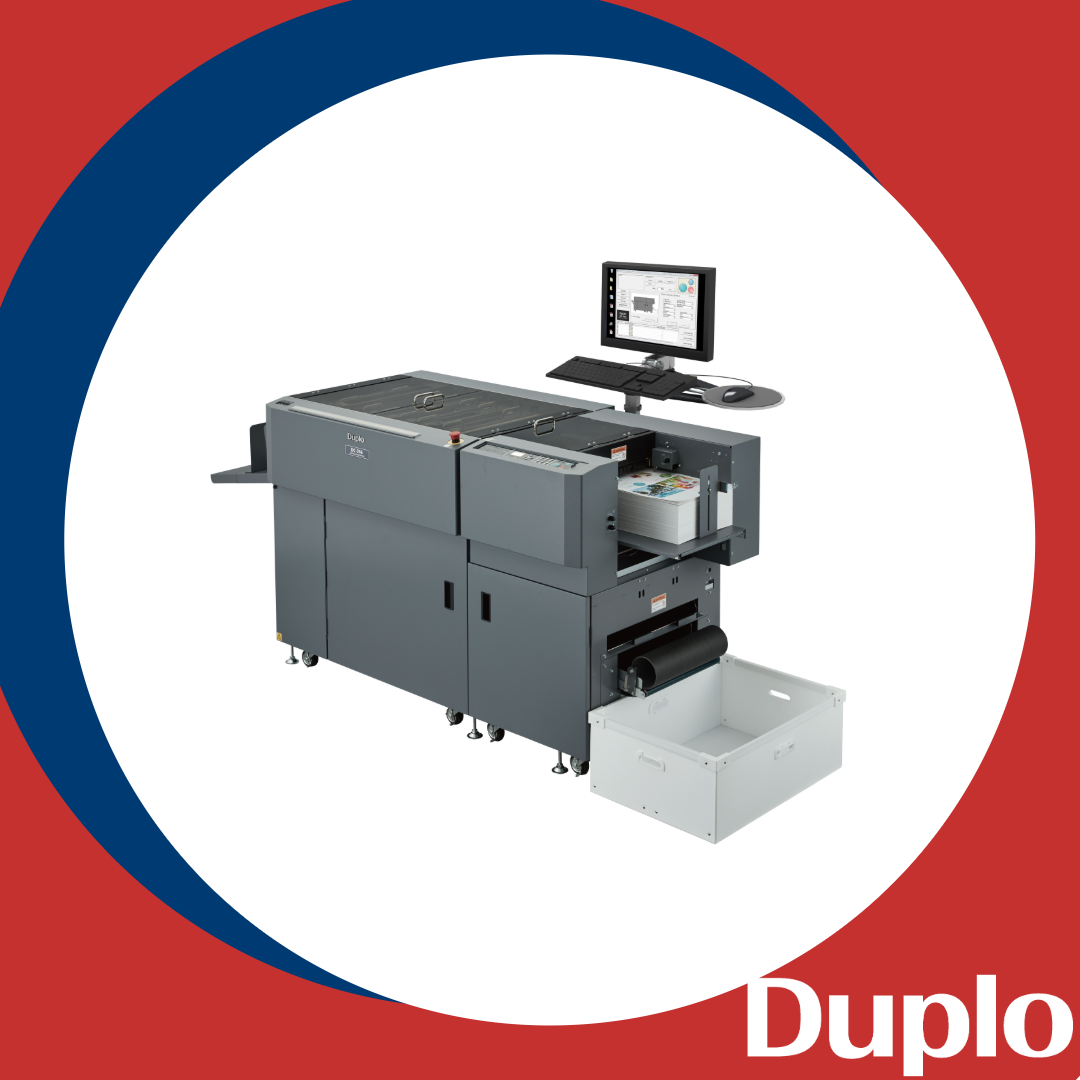

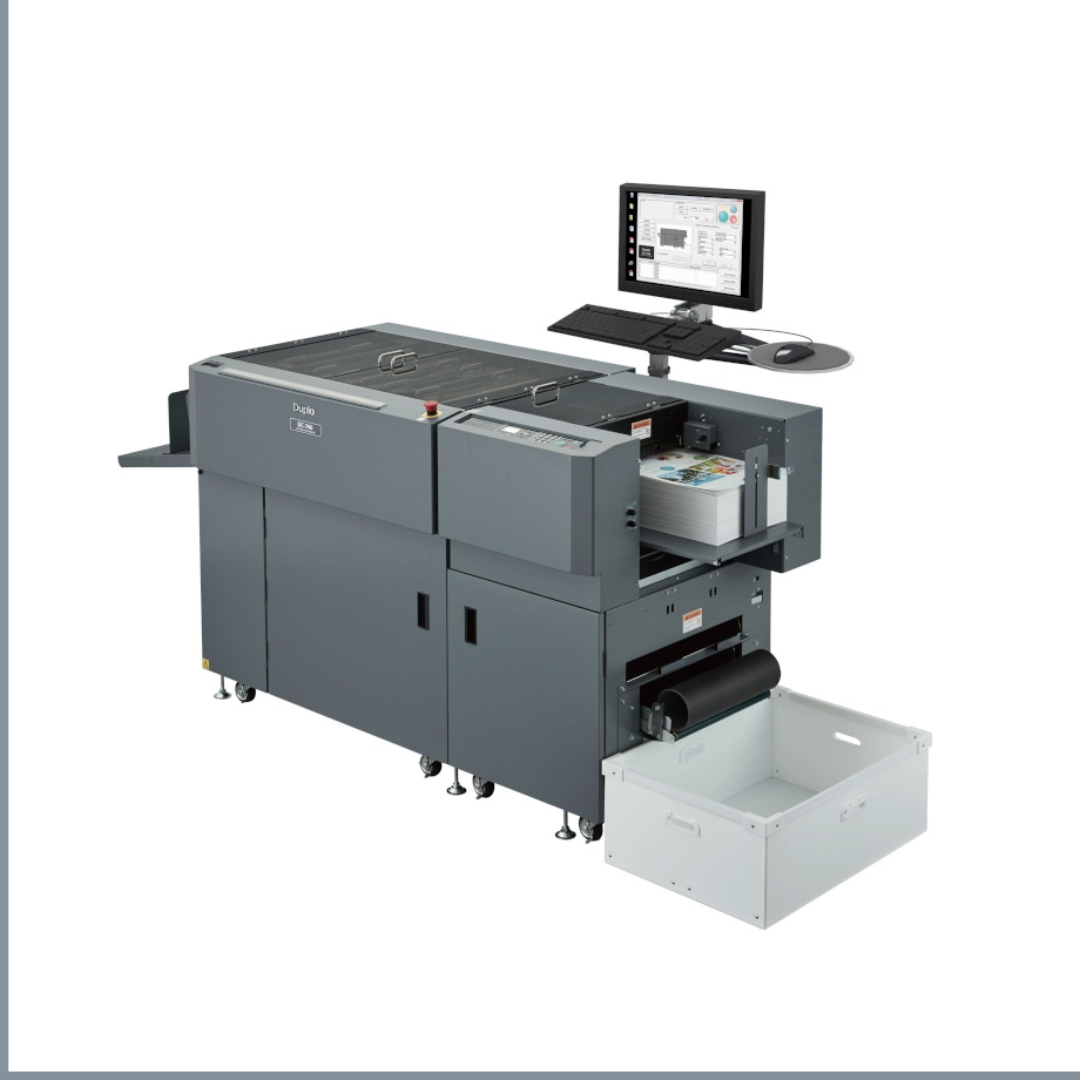

Duplo DC-746 Slitter/Cutter/Creaser

The Ultimate All-in-One Digital Color Finisher

Product Overview

The DC-746 Slitter/Cutter/Creaser is Duplo's most powerful all-in-one digital color finishing solution, ideal for digital printers with medium to high production jobs. Performing up to 10 slits, 25 cuts, and 20 creases in one pass, this digital color finisher eliminates white borders and toner cracking on fold lines, producing professionally finished documents in a matter of minutes.

Key Features

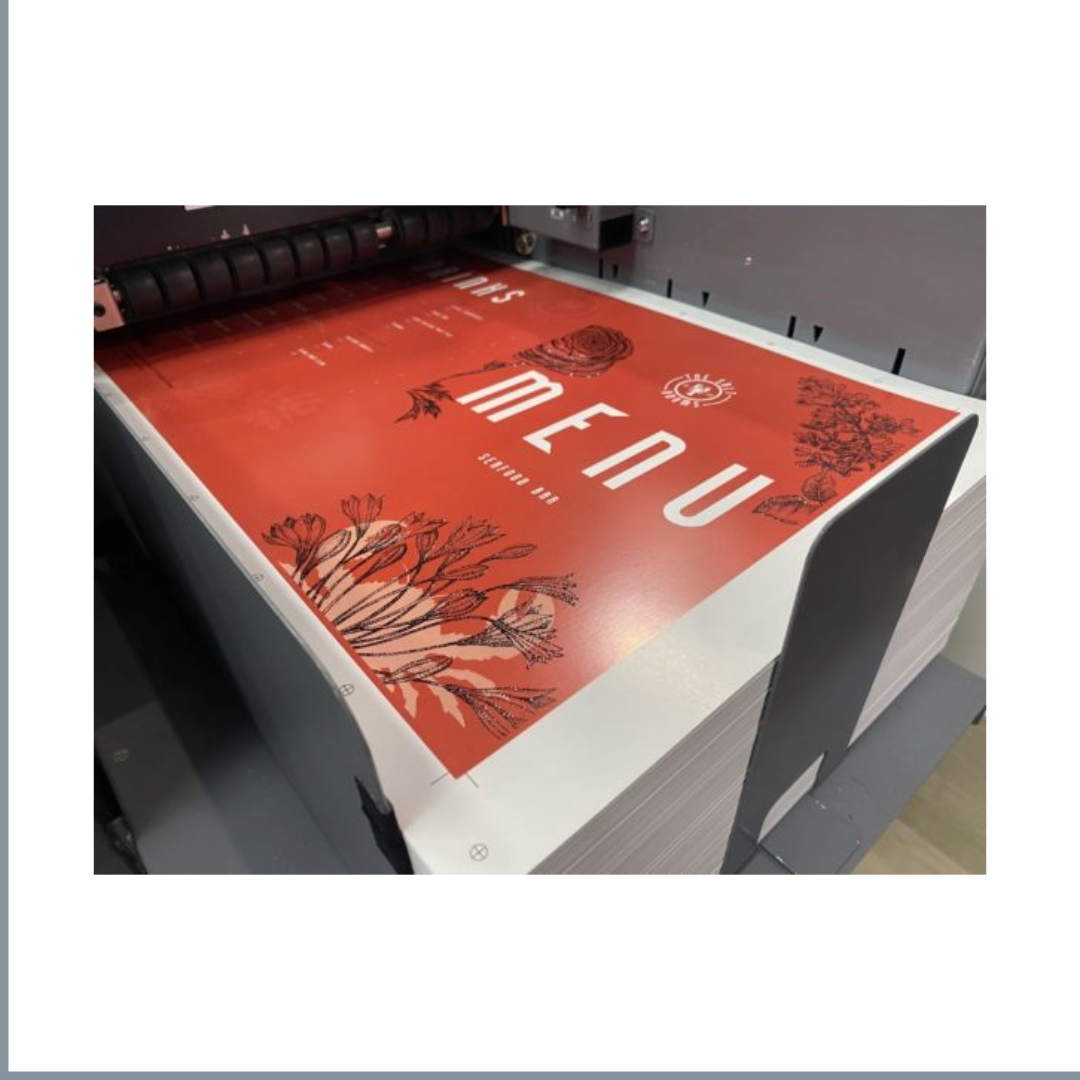

  • Produces full-bleed applications such as business cards, brochures, greeting cards, direct mailers, and more
  • Up to 10 slits, 25 cuts, and 20 creases in a single pass
  • PC Controller software for easy job setup with job template library
  • Built-in CCD scanner for barcode reading and image drift compensation
  • Waste Conveyor for easy removal of margins and gutters
  • Compatible with the Integrated Folding System (IFS)
  • Optional Rotary Tool and Cross Perforation Modules
  • Elevator Stacker for neatly organized finished pieces
  • High capacity 5.9" (150mm) feed capacity stacker
  • Unique top air-suction feeding system
  • Air knife and ultrasonic sensor for improved feed consistency

Specifications

Specification Details
Feeder Capacity 150 mm (5.9")
In-Feed Paper Size Width: 8.26" - 14.56" (210 - 370 mm)
Length: 8.26" - 26.4" (210 - 670 mm)
Finished Size Minimum: 1.89" x 1.97" (48 mm x 50 mm)
Maximum: 14.56" x 25.6" (370 mm x 650 mm)
Paper Weight 110 - 350 gsm / 80 lb. text - 130 lb. cover
Speed Up to 50 ppm (A4 SEF, lead/trim 10 mm, center crease)
40 ppm when using CCD
Slits Up to 10 slits per sheet
Cuts Up to 25 cuts per sheet
Creases Up to 20 creases per sheet

Additional Features

  • 80 job memory in main unit
  • Test feed (1 sheet)
  • Feed skew adjustment
  • Ultrasonic double-feed detection
  • On-the-fly rejection
  • Emergency stop switch
  • Cleaning mode
  • Barcode and registration mark compatibility with EFI Fiery Command Workstation imposition tool (Fiery System 10 or newer)
  • Future enhancements include JDF finishing automation for fully integrated workflows

Optional Modules

  • Rotary Tool Module: Performs perforations, micro-perforations, scores, slit-scores, and strike perforations (across the length of the sheet)
  • Cross Perforating Module: Performs perforations, micro-perforations, slit-scores, and strike perforations (across the width of the sheet)

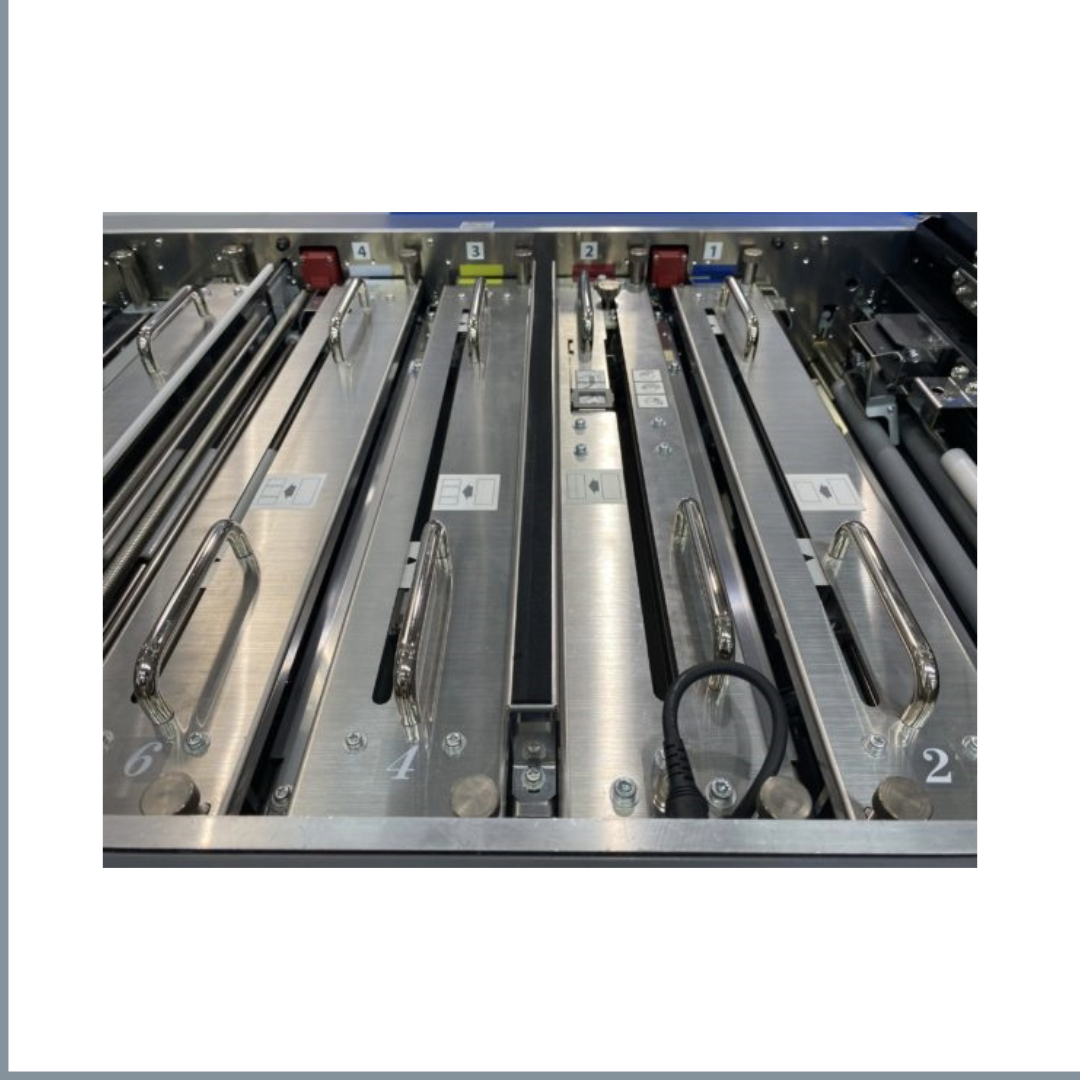

  • Additional Slitting Modules: Add up to 2 extra Slitting Modules with two sets of slitters each for a maximum of 10 slits
  • Integrated Folding System (IFS): Creates an even more versatile finishing solution that slits, cuts, creases, scores, perforates, slit-scores, micro-perfs, and folds – all in one pass

Sample Applications

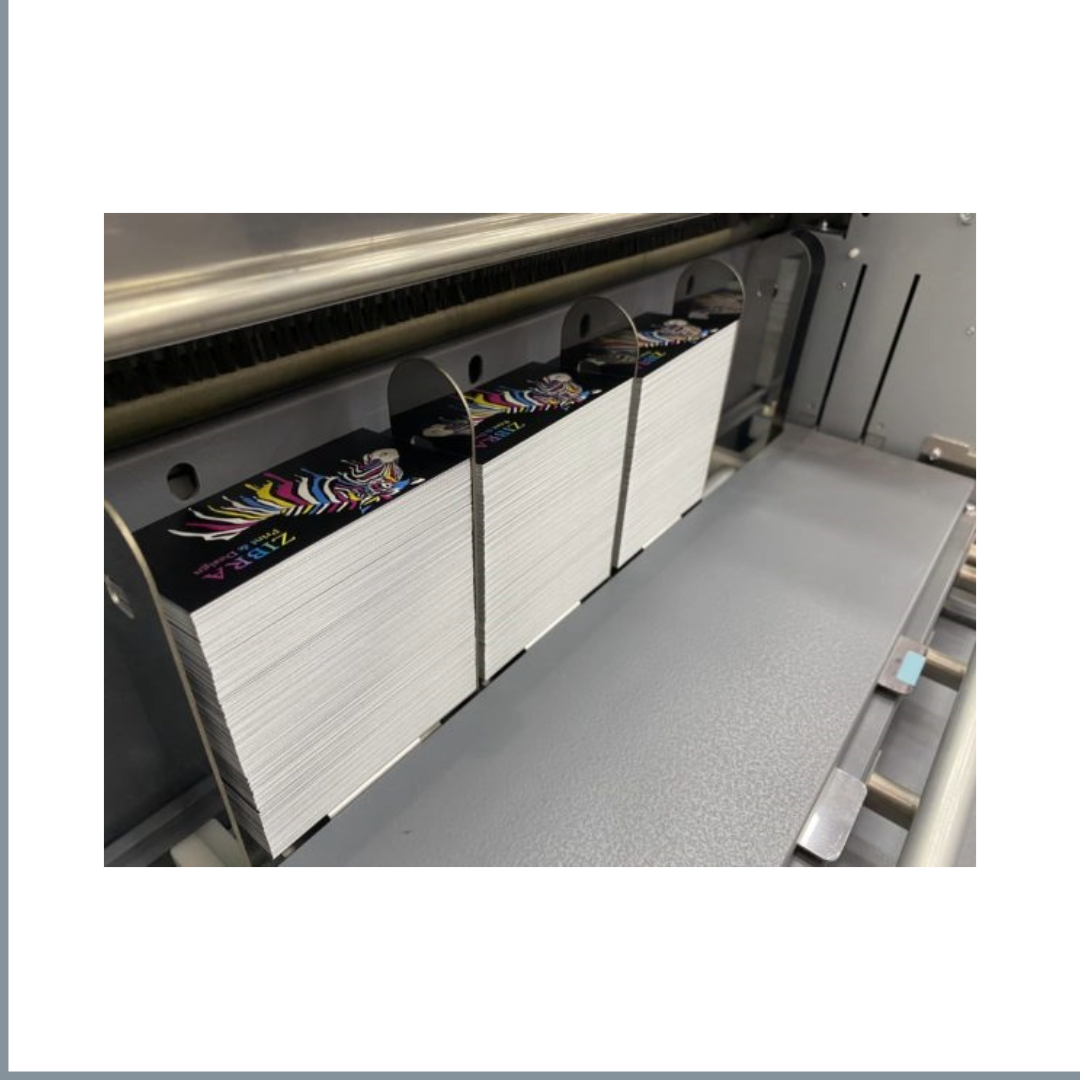

  • 24-up or 36-up business cards
  • "L" perforated business card within postcard
  • Slit-score, lay-flat greeting cards
  • Direct mailers with "T" or "L" shape perforated coupons
  • Event tickets with multiple perforations

Request Pricing

Interested in the Duplo DC-746 Slitter/Cutter/Creaser? Get in touch with us for pricing information and to discuss how this versatile machine can benefit your business.
