Duplo DC-746 B2 Slitter Cutter Creaser

Duplo DC-746 B2 Slitter Cutter Creaser

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Duplo DC-746 B2 Slitter/Cutter/Creaser

All-In-One Finishing for B2 Output

Product Overview

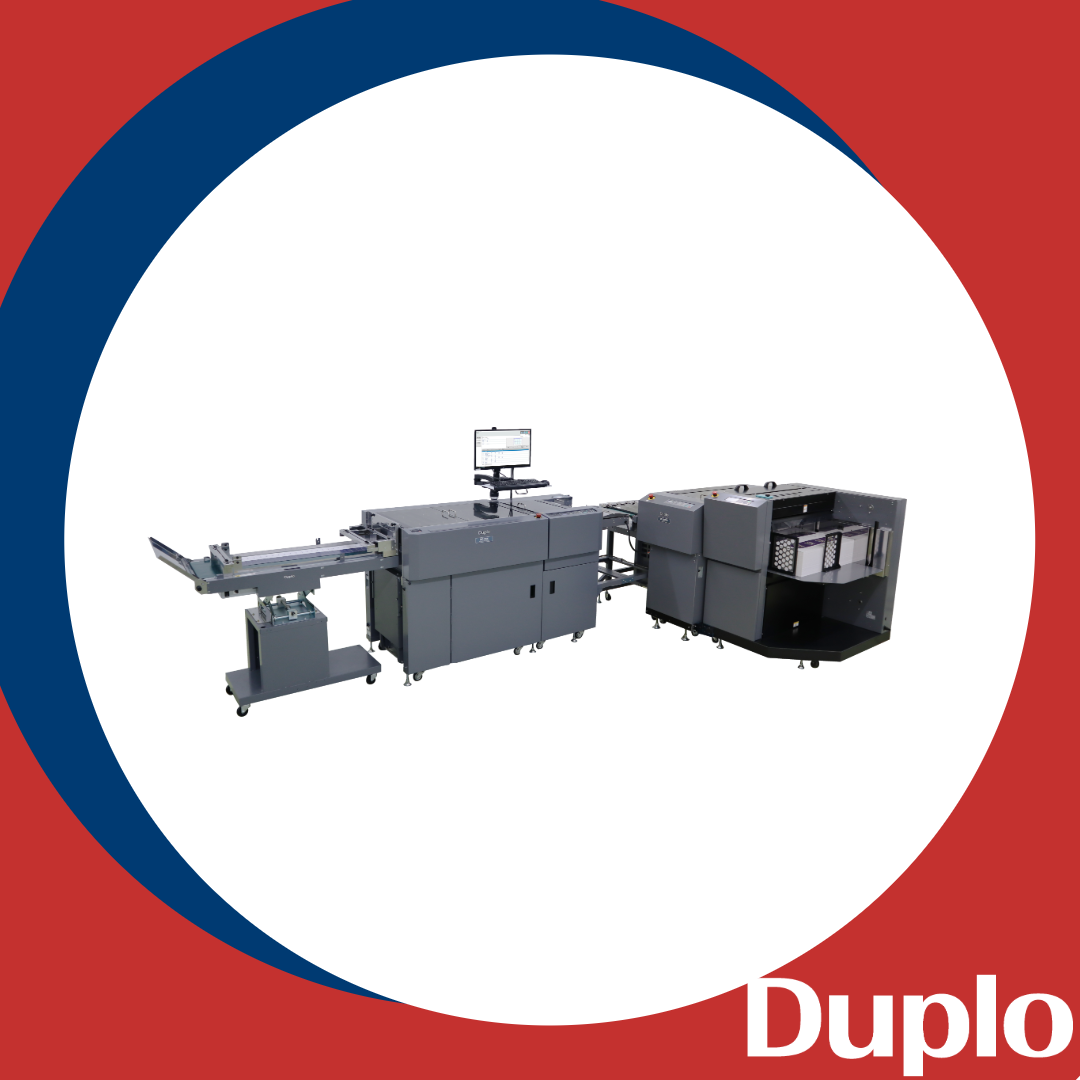

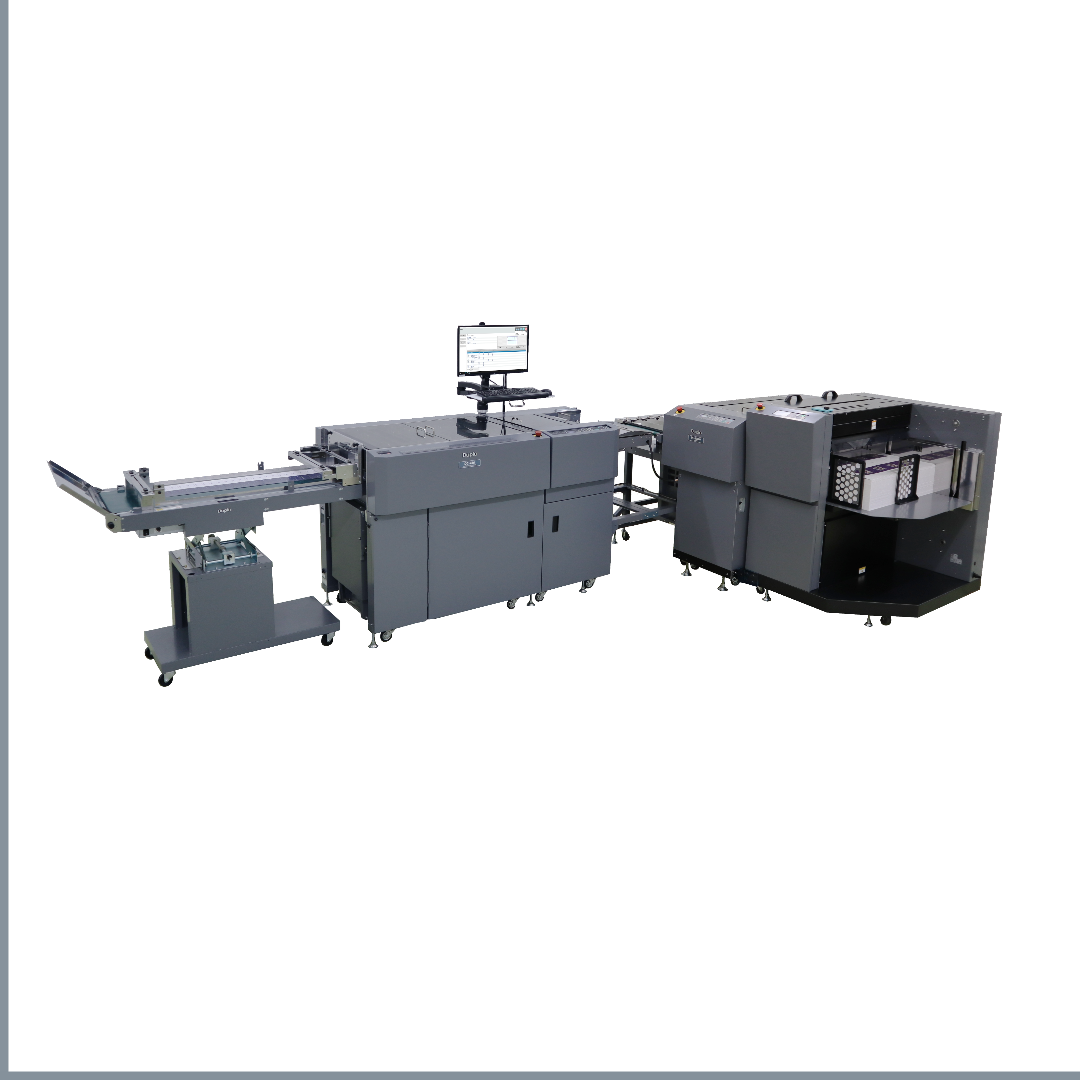

The Duplo DC-746 B2 Slitter/Cutter/Creaser integrates the DSF-20K B2 Feeder and DC-20000 B2 Cutter/Bridge Unit with the all-in-one DC-746 Slitter/Cutter/Creaser, expanding your capabilities to turnaround jobs with better accuracy and efficiency. Process output from your B2 digital devices and finish them on demand, turning flat sheets with multiple-up impositions into finished pieces that are slit, cut, creased, scored, and perforated in a single pass.

Key Features

  • All-in-one finishing for B2-sized formats
  • Eliminates touchpoints and cuts job costs
  • Optimizes multiple-up imposition layouts
  • Removes margins/gutters and prevents cracking
  • Creates custom T- and L-shape perforations
  • Up to 10 slits, 30 cuts, and 20 creases per sheet
  • One touch operation with PC Controller software
  • CCD scanner for image shift compensation
  • B2 feeding and cutting capabilities
  • Modular design for versatility and future expansion

DC-746 Specifications

Specification Details
Speed Up to 50 sheets per minute (8.5" x 11" 2 cuts, 1 crease and CCD scanner off)
Input Paper Size 8.26" x 8.26" to 14.56" x 26.37" (210 x 210 mm to 370 x 670 mm)
Min. Finished Size 1.89" x 1.97" (48 x 50 mm)
Feeder Capacity 5.9" (150 mm)
Paper Weight 110-350 gsm
Slits Up to 10 per sheet
Cuts Up to 30 per sheet
Creases Up to 20 per sheet

Components

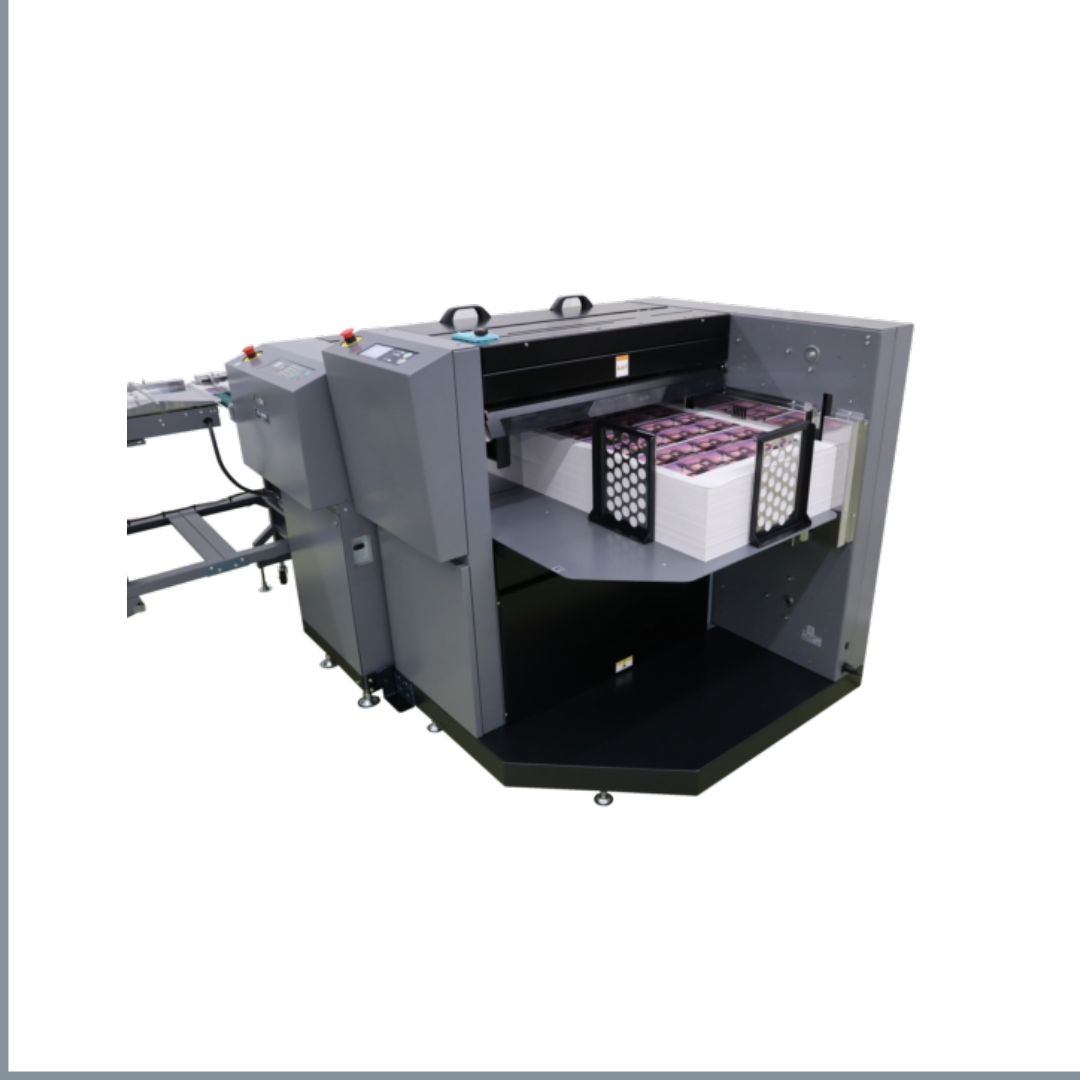

DSF-20K B2 Sheet Feeder

  • Input Paper Size: 14.56" x 29.52" (370 x 750 mm)
  • Paper Type: Uncoated, Coated, Laminated, UV Coated (110-400 gsm)
  • Paper Loading Capacity: Up to 10"
  • Processing Speed: Up to 1,500 sheets per hour, 25 sheets per minute

DC-20000 B2 Cutter/Bridge

  • Input Paper Size: 14.56" x 29.52" (370 x 750 mm)
  • Maximum Cuts: Up to 6 cuts per sheet
  • Processing Speed: Up to 9.5 sheets per minute (20.86" x 28.34" sheets with 2 cuts)
  • Built-in scanner for B2 registration mark reading

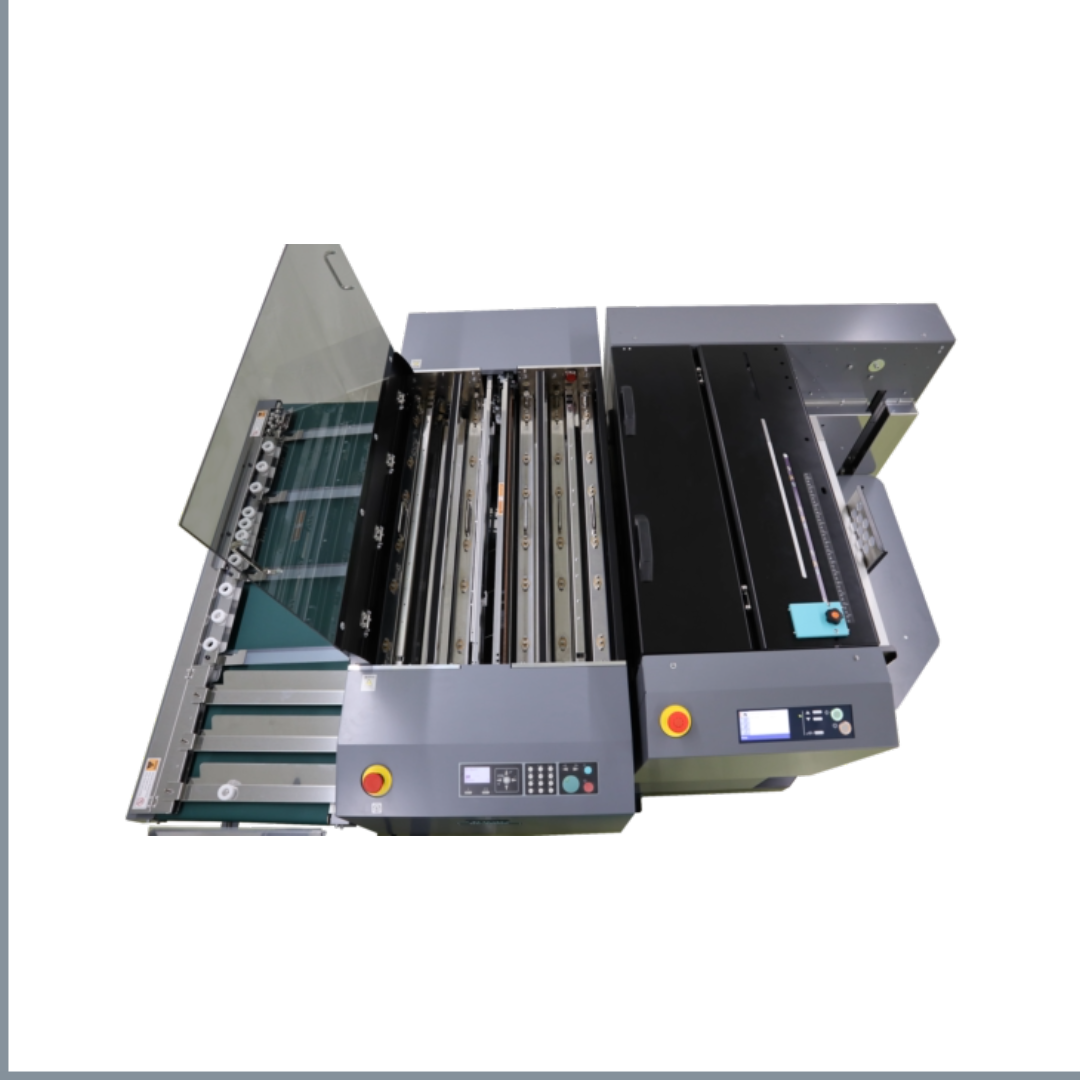

DC-746 Slitter/Cutter/Creaser

  • Rotary slitters, guillotine cutter, and depth-adjustable creaser
  • CCD scanner for registration mark reading and image shift compensation
  • Optional ST-3 Long Conveyor Stacker

Optional Modules

  • RTM-04 Rotary Tool Module: Performs perforations, micro-perforations, scores, and slit-scores across the length of the sheet
  • CPM-04 Cross Perforation Module: Performs perforations, micro-perforations, and slit-scores across the width of the sheet
  • OSM-04 Slitter Module: Adds two sets of slitter heads
  • 48" long conveyor stacker
  • Integrated Folding System (IFS)

Advantages

  • Automated multiple-up finishing for B2 output
  • One touch operation with intelligent software for job optimization
  • Reliable B2 feeding and cutting with image shift compensation
  • Versatile perforating and slitting options
  • Modular design allows for standalone use of DC-746 for smaller format jobs

Request Pricing

Interested in the Duplo DC-746 B2 Slitter/Cutter/Creaser? Get in touch with us for pricing information and to discuss how this versatile machine can benefit your business.
