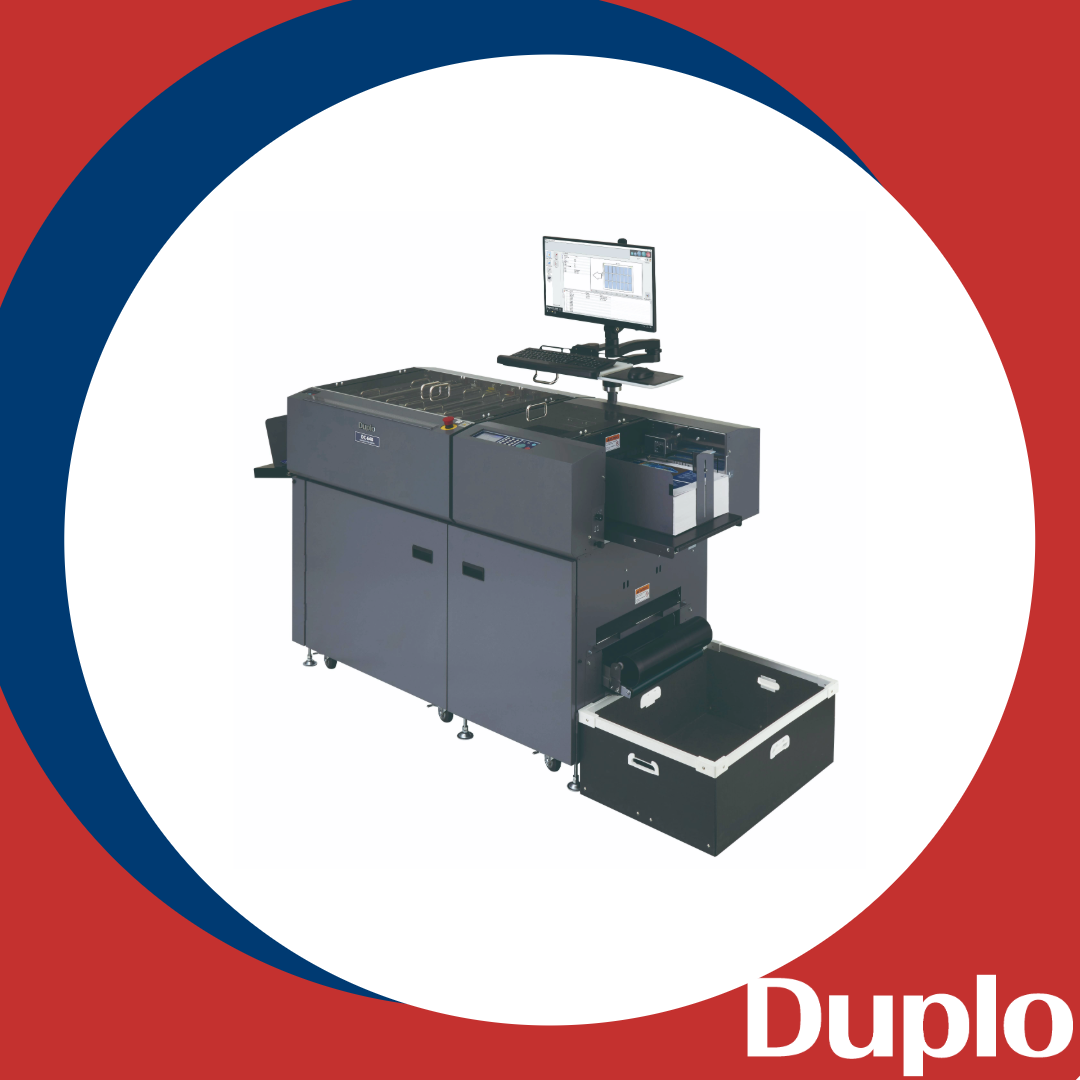

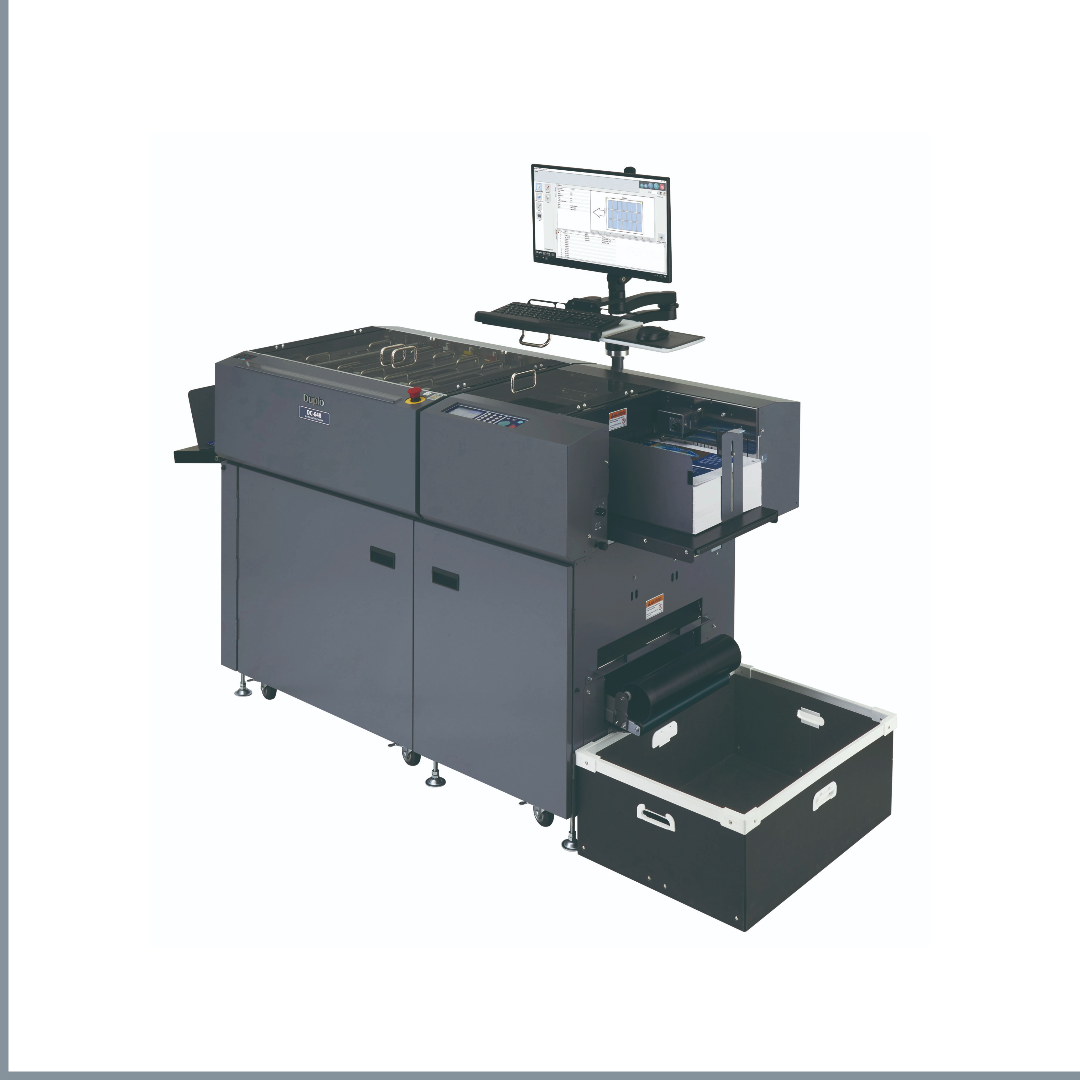

Duplo DC-648 Slitter/Cutter/Creaser
Automated, Precision Finishing for Mid to High Volume Jobs
Product Overview
The fully automated DC-648 Slitter/Cutter/Creaser is the latest introduction to Duplo's line of all-in-one finishing solutions. With capabilities to slit, cut, crease, and perforate in one pass, the DC-648 produces full-bleed applications up to 40 sheets per minute. Ideal for short to mid-production runs, it produces a variety of applications such as 24-up business cards, postcards, coupons and tickets, book covers, and much more.
Key Features
- All-in-one finishing for mid to high volume jobs
- Eliminates touchpoints and reduces downtime
- Integrates with Fiery Impose® in Fiery Driven™ environments
- Removes margins/gutters and prevents toner cracking
- Creates custom T- and L-shape perforations
- Up to 40 sheets per minute
- Paper weight up to 400 gsm
- Up to 8 slits, 30 cuts & 20 creases per sheet

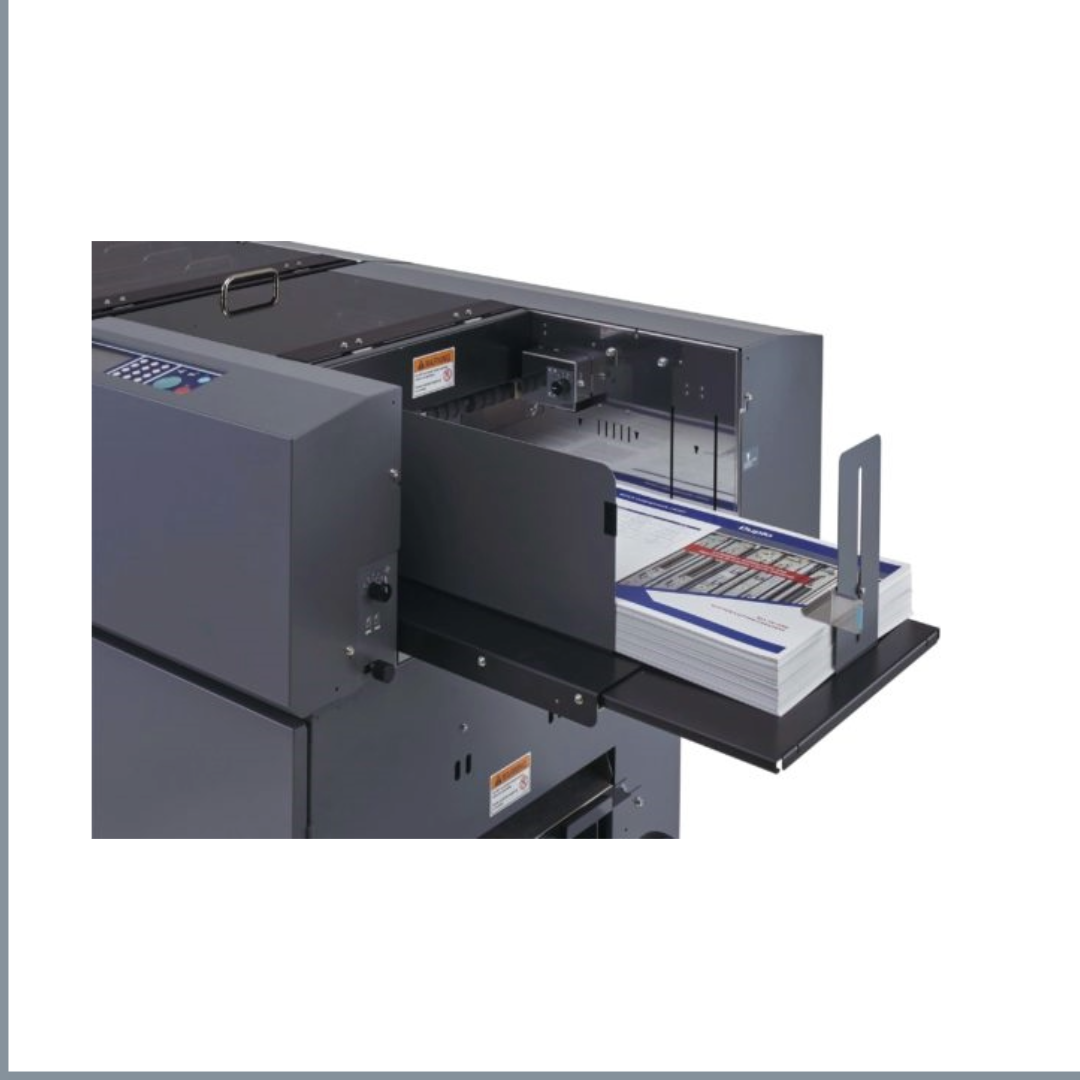

- 4.72" feed capacity stacker
- Enhanced PC Controller software
- Camera sensor for barcode and registration mark scanning
Specifications
| Specification | Details |
|---|---|
| Speed | Up to 40 sheets per minute (8.5" x 11" 2 cuts, 1 crease and camera setting off) |
| Input Paper Size | 8.26" x 8.26" to 14.56" x 39.37" (210 mm x 210 mm to 370 mm x 1,000 mm) |
| Min. Finished Size | 1.89" x 1.97" (48 mm x 50 mm) |
| Feeder Capacity | 4.72" (120 mm) |
| Paper Weight | 110 - 400 gsm |
| Slits | Up to 8 per sheet |
| Cuts | Up to 30 per sheet |
| Creases | Up to 20 per sheet (interchangeable 1.2 mm and 1.4 mm widths) |
| Memory | 250 jobs using the control panel |
Additional Features

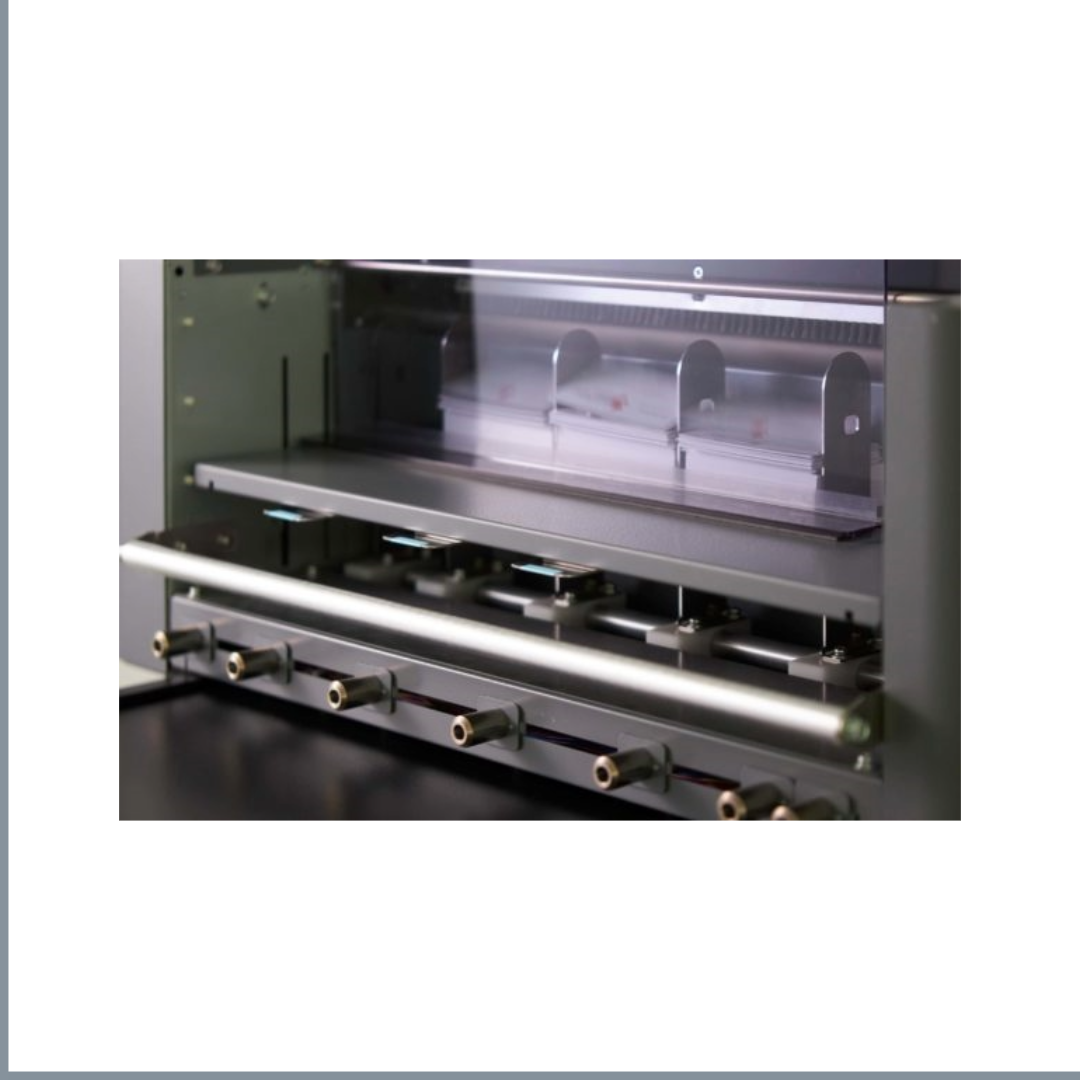

- Precision Finishing: Equipped with rotary slitters, guillotine cutter, and depth-adjustable creaser

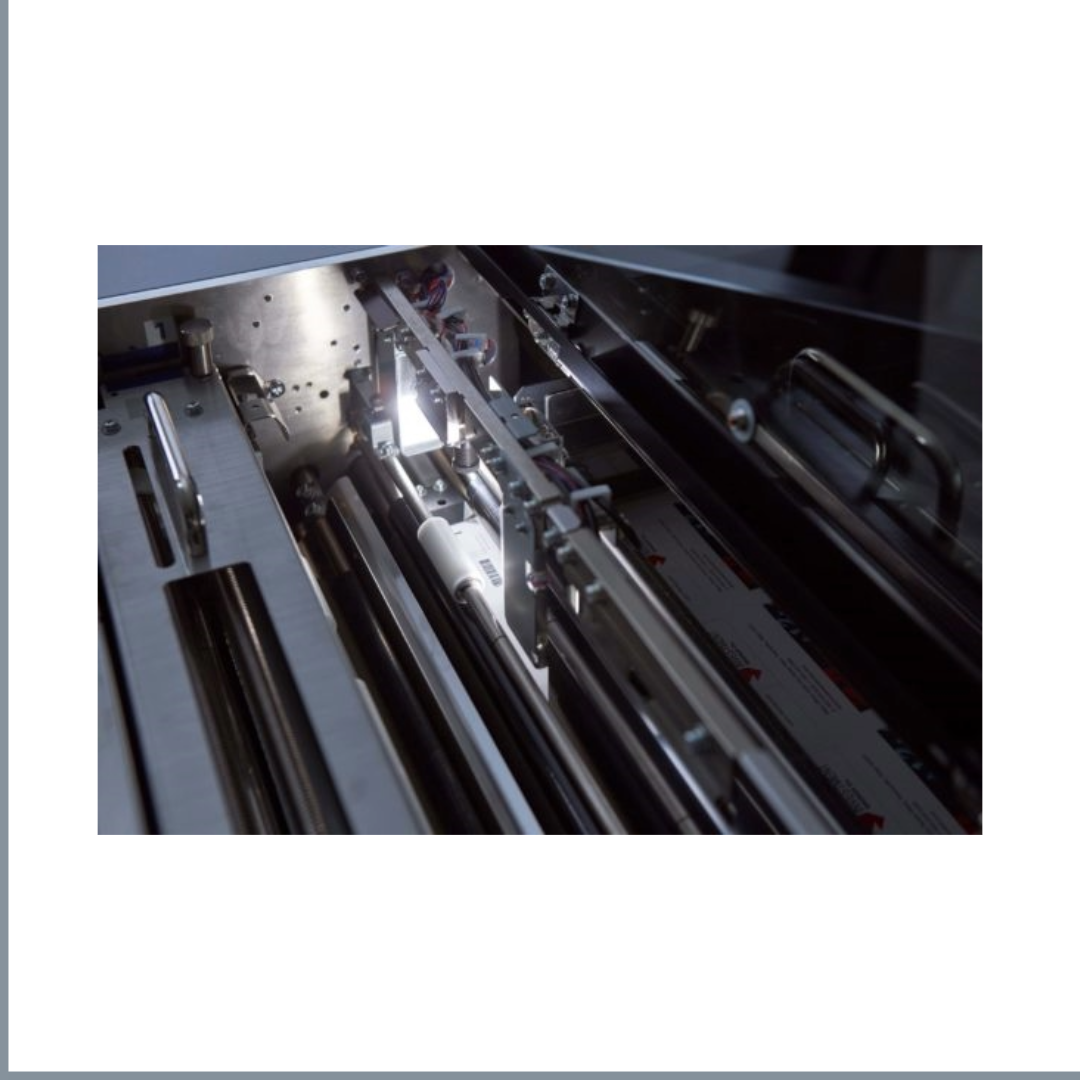

- Automated Registration & Changeovers: Camera sensor for barcode scanning and registration mark reading
- Enhanced PC Controller Software: Easy job programming and unlimited job storage on hard drive
- Duplo's Signature Feed System: Air suction belt feed system with ultrasonic double feed detection
- Integration with Fiery Impose: Automate job preparation and finishing setup in Fiery Driven™ environments
- Optional Perforation Modules: Increase versatility with Rotary Tool and Cross Perforation modules
Optional Modules
- Rotary Tool Module (RTM-09): Performs perforations, micro-perforations, scores, and slit-scores across the length of the sheet
- Cross Perforation Module (CPM-09): Performs perforations, micro-perforations, and slit-scores across the width of the sheet
- Slitting Module: Adds a set of two slitters to process up to 8 slits per sheet
Request Pricing
Interested in the Duplo DC-648 Slitter/Cutter/Creaser? Get in touch with us for pricing information and to discuss how this versatile machine can benefit your business.
