Product Overview

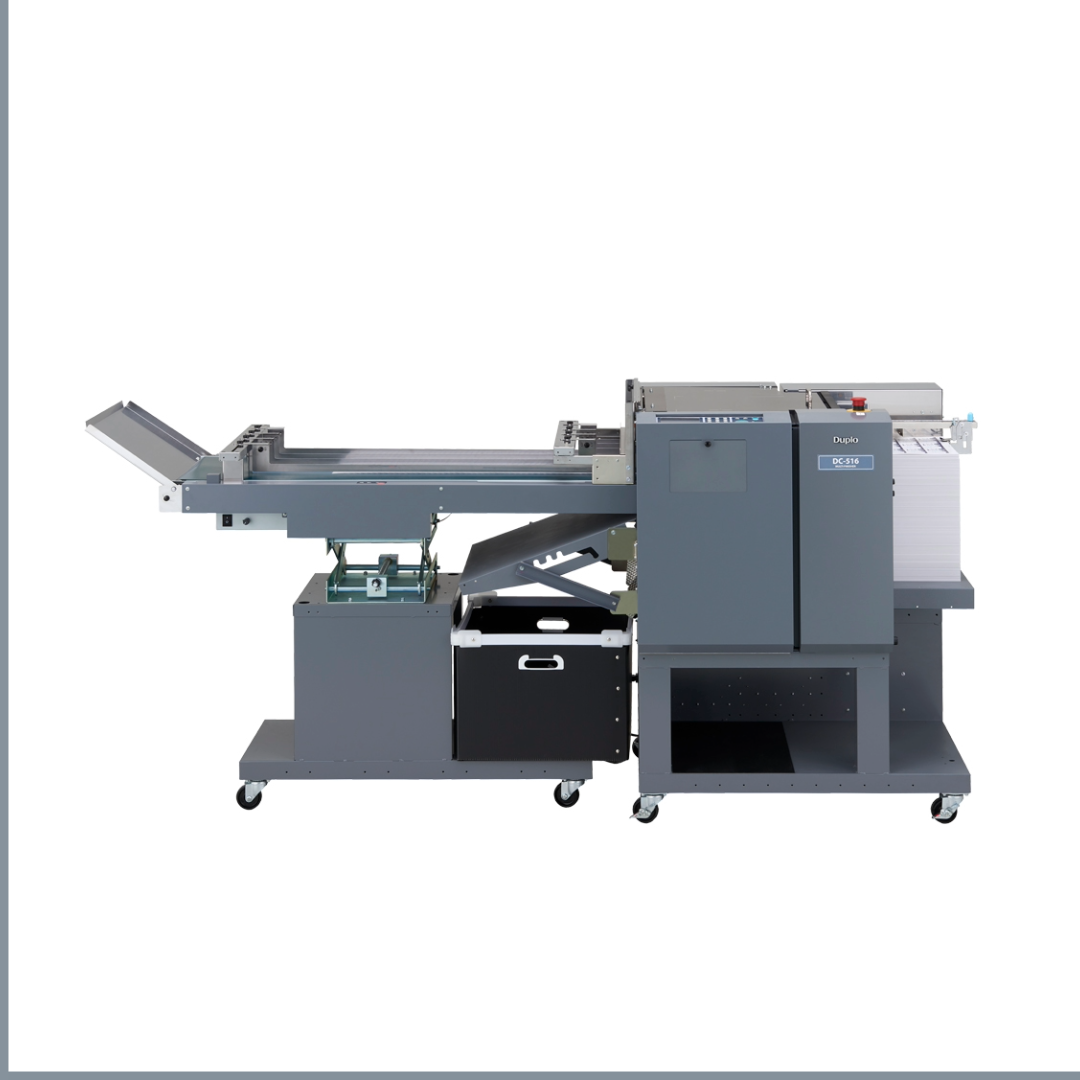

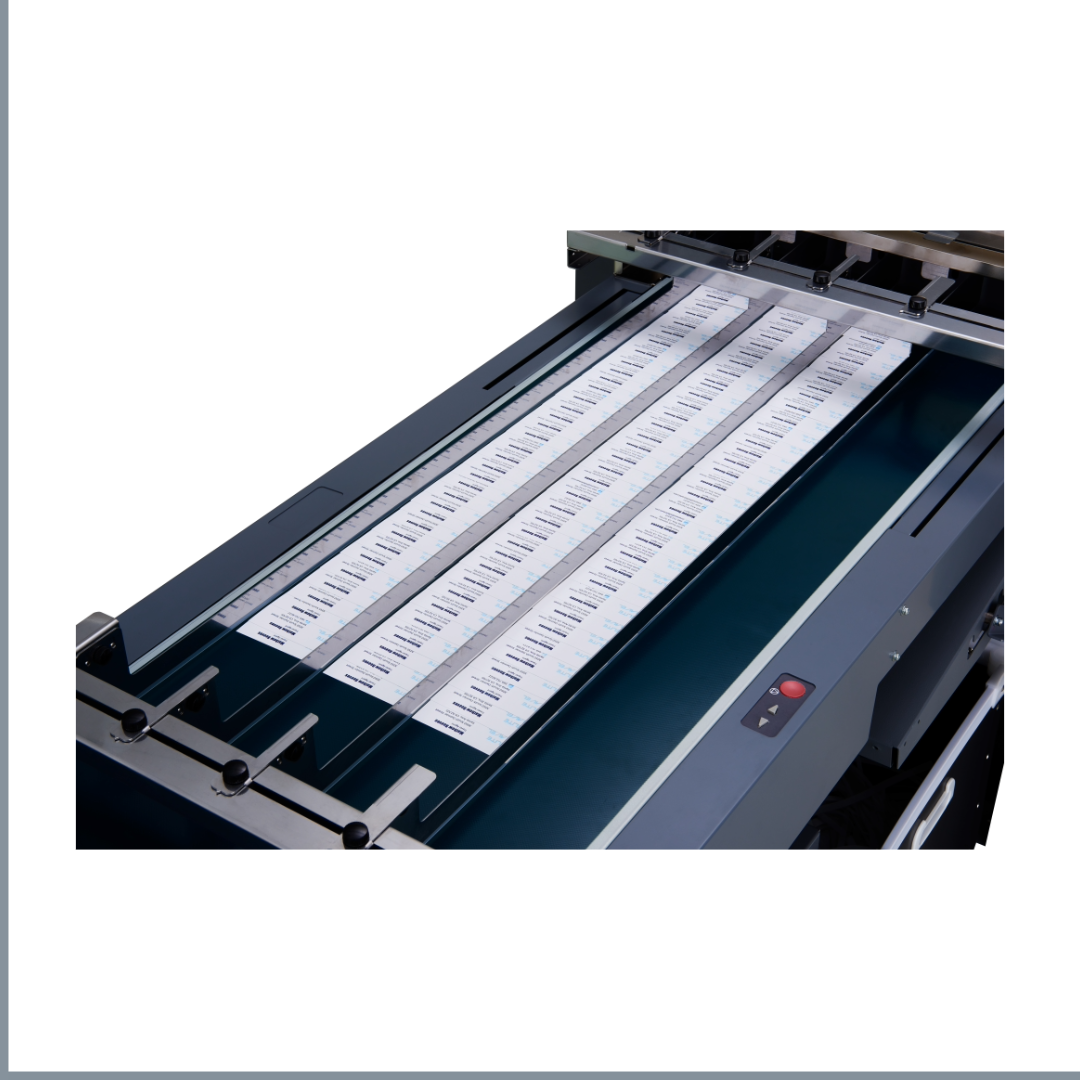

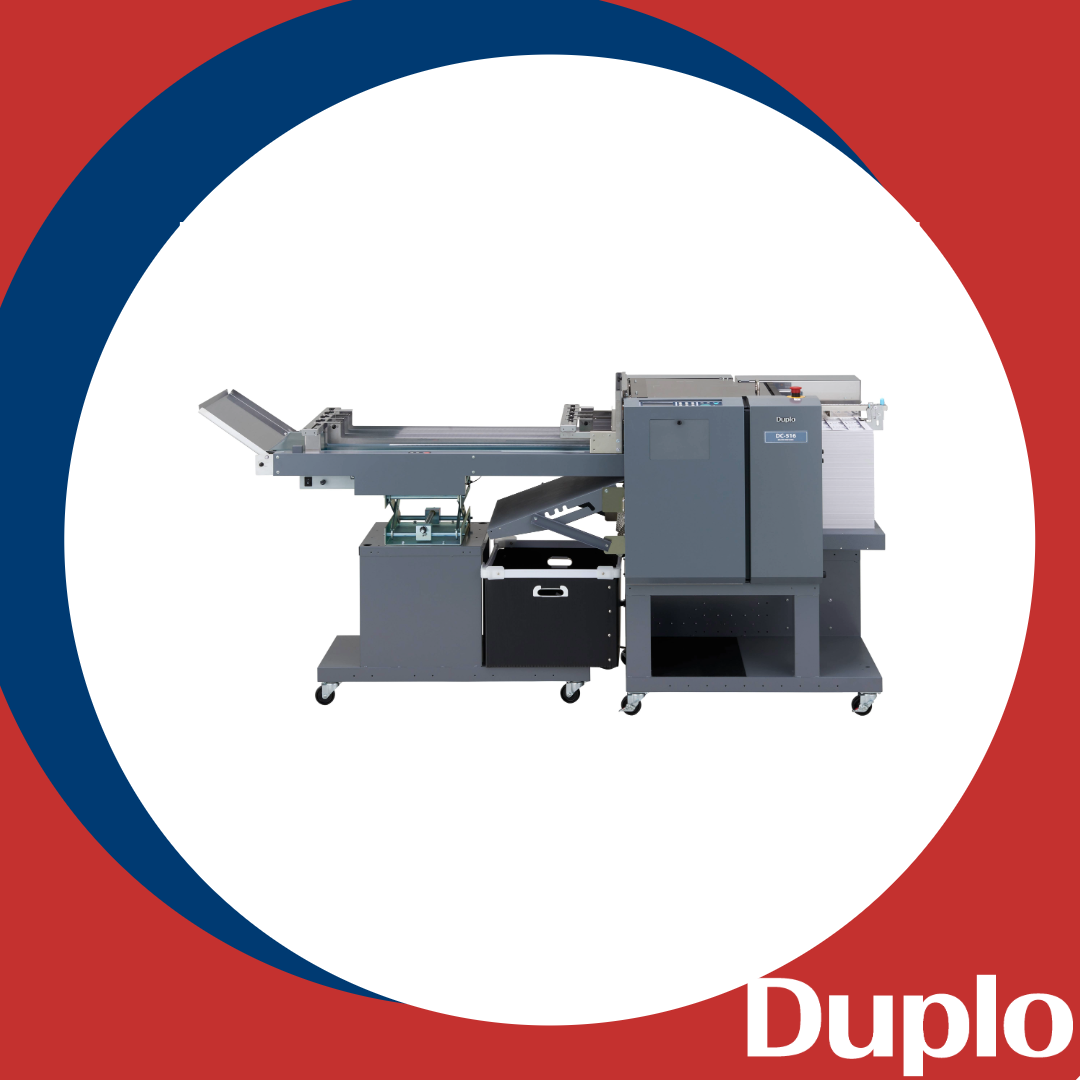

The DC-516 Pro Multi-Finisher provides the flexibility to be used as a high-speed creasing device, cutter, or perforating unit – or a combination of any two functions – for finishing applications up to 26.7" in length. More suitable for longer runs, the DC-516 Pro offers a high feed capacity and long conveyor stacker to keep your productivity going with minimal interruptions. Finish large volume business cards, tickets, and book covers on demand.

Key Features

• High speed finishing for high volume jobs
• Choose from DC-516 PRO and base models
• Remove margins/gutters
• Prevent toner cracking
• Create T- and L-shape perforations
• High capacity 14.2" (360 mm) feeder
• Handles paper weights from 110 - 400 gsm
• Up to 10 slits, 30 cuts, and 20 creases per sheet
• Air suction belt feed system with ultrasonic double-feed detection
• REG Mark Scanner for image shift compensation

Specifications

Key Capabilities

High Speed Impact Creasing

Perform positive or negative crease patterns up to 100 sheets per minute in a single pass. Use two modules simultaneously for up and down creases to fold sheets in opposite directions.

High Speed Cutting

Cut 24-up business cards on 13" x 19" or 36-up cards on 14" x 20" sheets quickly with up to 30 cuts and 10 slits per sheet.

High Speed Perforating

Create tickets, coupons, and reply cards with T- or L-shape perforations using optional rotary tool and cross perforating modules.

Large Capacity Feeding

14" feed capacity with air suction belt system, air knife, and side air for efficient and reliable feeding of various paper types and sizes.

Standard Features

• Air Knife
• Side Air
• Feed Skew Adjustment
• Ultrasonic Double-Feed Detection
• REG Mark Scanner
• Batch Separation
• Waste Box
• Emergency Stop Switch
• LCD Control Panel

Optional Modules

• CRM-10 Crease Module
• OSM-06 Slitter Module (includes 6 Slitters and requires OMK-08)
• CPM-06 Cross Perforating Module
• RTM-06 Rotary Tool Module (requires OMK-08 and OMK-07 for Skip Perforation)
• SLT-26 Slitter Left Unit (1 Slitter Block)
• SLT-27 Slitter Right Unit (1 Slitter Block)
• CTM-05 Cutter Module (requires OMK-12)

Model Comparison

Request Pricing

Interested in the Duplo DC-516 Pro Multi-Finisher? Get in touch with us for pricing information and to discuss how this versatile machine can benefit your business.
