Product Overview

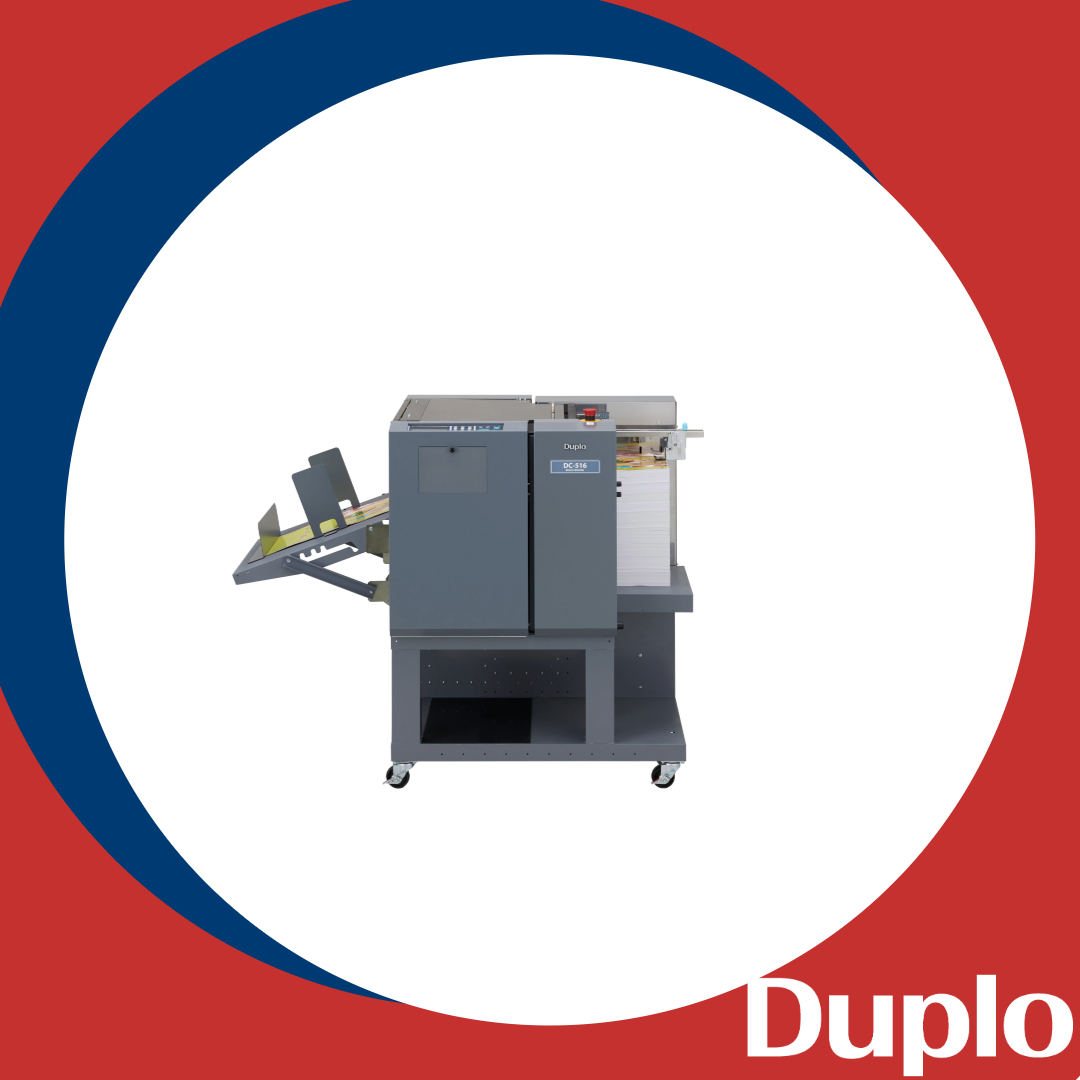

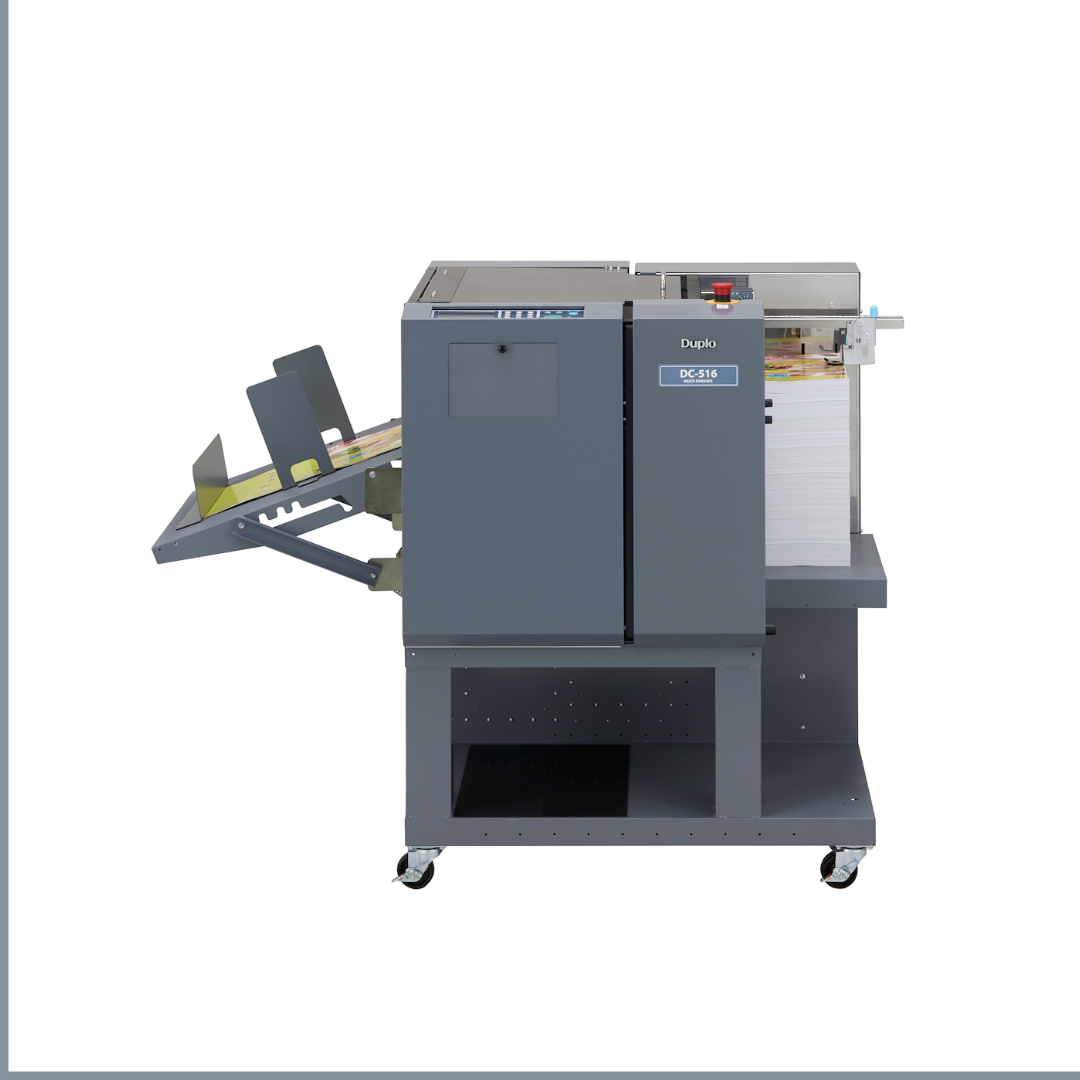

The DC-516 Base Multi-Finisher offers the flexibility to be used as a high-speed creasing device with the option to add cutting, slitting, or perforating capabilities. It's designed for finishing applications up to 26.37" in length and can be configured according to your specific needs as your business grows.

Key Features

• Flexible configuration options for various finishing needs
• High-speed creasing with two included creasing modules
• Options to add cutting, slitting, and perforating capabilities
• Prevent toner cracking with precise creasing
• Create custom finishing solutions with modular design
• High capacity 14.2" (360 mm) feeder
• Handles paper weights from 110 - 400 gsm
• Air suction belt feed system with ultrasonic double-feed detection
• REG Mark Scanner for image shift compensation

Specifications

Standard Features

• Two Creasing Modules
• Air Knife
• Side Air
• Feed Skew Adjustment
• Ultrasonic Double-Feed Detection
• REG Mark Scanner
• Batch Separation
• Waste Box
• Emergency Stop Switch
• LCD Control Panel

Optional Modules

• OSM-06 Slitter Module (includes 6 Slitters and requires OMK-08)
• CPM-06 Cross Perforating Module
• RTM-06 Rotary Tool Module (requires OMK-08 and OMK-07 for Skip Perforation)
• SLT-26 Slitter Left Unit (1 Slitter Block)
• SLT-27 Slitter Right Unit (1 Slitter Block)
• CTM-05 Cutter Module (requires OMK-12)
• ST-3 Long Conveyor Stacker

Key Capabilities

High-Speed Impact Creasing

Perform positive and negative crease patterns up to 100 sheets per minute in a single pass. Use both included creasing modules simultaneously for up and down creases to fold sheets in opposite directions.

Modular Design

The DC-516 Base model offers the choice to select what you need and when you need it as your business grows. Two slots allow you to mix and match any two modules to produce a wider range of applications.

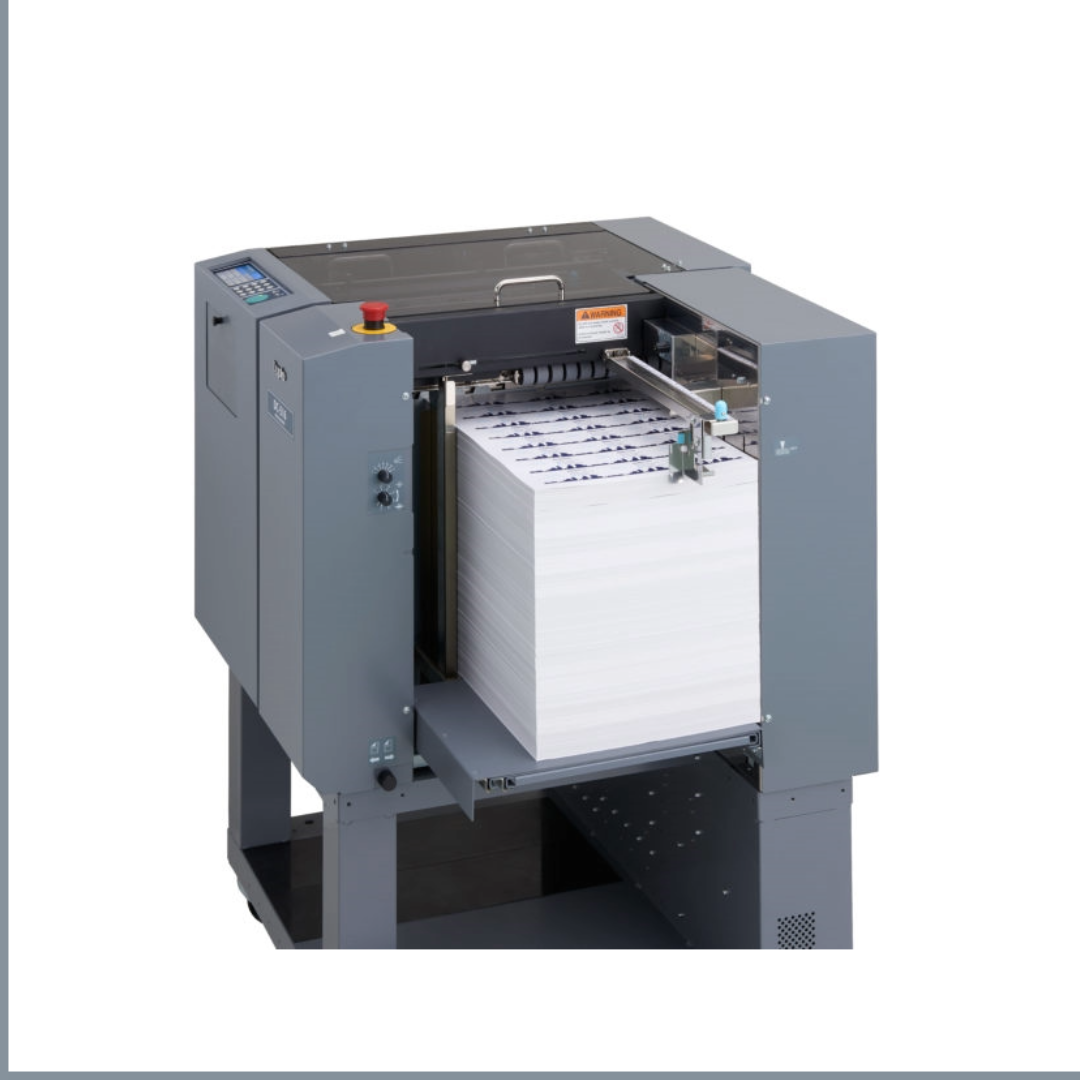

Large Capacity Feeding

14.2" feed capacity with air suction belt system, air knife, and side air for efficient and reliable feeding of various paper types and sizes.

Applications

• Book Covers
• Gatefold Cards
• Perfect bound covers with hinges
• Z-fold pieces
